Chasing M2 - Robotic Arm for Chasing M2


Chasing M2 - Robotic Arm for Chasing M2

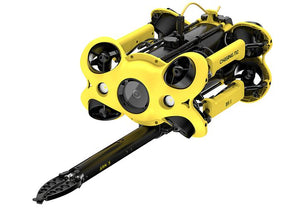

CHASING Robotic Arm is small and easy to install. The maximum drag force is 12 kg and the force is adjustable. It is suitable for multiple uses such as sampling detection.



With maximum 6kg clamping force and 12kg drag force, the grabber claw can easily complete underwater operations. Adjust different forces on the App to avoid damage to the clamped items.



With a 120mm opening and closing distance and a 2.8-second single opening and closing time, the grabber claw operates smoothly and can grab a variety of items.



10° Elevation Angle on Holder, Improving the Vision Intergrity

The holder increases the angle between the grabber claw and the underwater drone by 10°, avoiding the obstruction of the view and enhancing the experience of the operation effectively.



Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.



Specifications:



  • Size: 460 x 33.5 mm
  • Weight: 370g
  • Weight in Water: 50g
  • Max Grasping Force: 6kg
  • Max Drag Force: 12kg
  • Opening and Closing Distance: 120mm
  • Max Depth: 100 meters
  • Single Opening / Closing Time: 2.8s
