DJI RS 3

DJISKU: CP.RN.00000216.01

Please Select Your DJI RS3 Option: DJI RS3 (Only)
Price:
Sale price$535.00 CAD
Stock:
In stock

Description

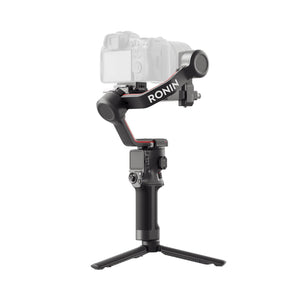

DJI RS 3

Ready When You Are

With every detail, DJI RS 3 delivers a flexible and efficient shooting experience to solo creators and independent crews. Light and sleek, it provides professional stabilization and efficient control for more creative freedom and endless possibilities. DJI RS 3 is ready when you are.



Get Started Right Away

It's All About Speed

Quick-Release Plates

With dual-layered quick-release plates, mounting a camera onto RS 3 is fast and convenient, with no need to re-balance the gimbal after swapping out a new battery or memory card.

A newly added fine-tuning knob on the tilt axis allows the camera to slide forward or backward with millimeter-grade precision to achieve accurate balancing more easily when changing lenses.



Automated Axis Locks

RS 3 lets you get up and running instantly. When the gimbal is powered off, press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making transportation and travel significantly more efficient. Press and hold the power button and it will fold and lock automatically.



Wireless Shutter Control

By implementing Dual-Mode Bluetooth, RS 3 supports wireless shutter control,  saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.



Check Camera Compatibility

Stay Smooth

Professional Stabilization

Excellent Weight-to-Payload Ratio

Weighing only 1.3 kg/2.8 lbs (including gimbal, battery grip, and quick-release plates), RS 3 can be held easily in one hand, while its 3kg/6.6lb load capacity is more than enough to support mainstream cameras, including the  A7S3 or Canon R5 with a 24-70mm F2.8 lens.

Check Camera Compatibility



3rd-Gen RS Stabilization Algorithm

Thanks to a next-generation RS stabilization algorithm, RS 3 provides enhanced stability in any scenario. Laboratory testing shows RS 3 provides a 20% increase in stability over RSC 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.



Stabilization Testing Data Comparison

Beyond Smooth

When you need even smoother results, turn on Super Smooth mode. RS 3 will increase motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when 100mm-equivalent focal lenses are used.



All Within Reach

Immediate Control

Fast Parameter Setting

1.8" OLED Touchscreen

Compared with the black and white screen of RSC 2, RS 3 is equipped with a 1.8-inch OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface.



Instant Mode Switching

By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.

Customizable Front Dial

Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, or gimbal movements, making it exceptionally convenient for single-handed operation.



Practical Powerhouse



Efficient Video Transmission

Monitoring via Smartphone

RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter)  to transmit 1080p/30fps HD live feeds directly to a mobile device. The maximum transmission distance is 200 meters [4] and the end-to-end transmission latency is as low as 60 ms. A smartphone can also be attached to the NATO port on RS 3 with the phone holder for wireless monitoring.



Integrated Monitoring and Control

Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience.

Force Mobile

With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 3 gimbal for more flexible and dynamic camera movements.

 Focus on Creation



A Battery Built for Pros

Quick-Release Design

The new RS 3 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged independently from the gimbal.



12-Hour Operating Time + Fast Charging

The new battery grip provides an extended runtime of up to 12 hours, enough to handle continuous shooting throughout the day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.



Creativity Unleashed

Intelligent Functions

Motionlapse

Track

Panorama



Versatile Additions

Accessories

New Briefcase Handle

The redesigned briefcase handle is foldable for convenient storage, and comes with a new ergonomic handle to make it easier and faster to install and switch to Briefcase mode. The built-in cold shoe mount and 1/4"-20 mounting holes can connect to external monitors for shooting assistance, making low-angle camera movements more intuitive.



All-New Focus Motor

The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m) and audible noise is reduced by 50%. This delivers a smoother focusing experience and reduces the effect on audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.



Vertical Camera Mount

Install the Vertical Camera Mount to attach the camera vertically to RS 3 while avoiding camera ports, allowing easy portrait shooting at different angles for high-quality social media content.



Flexible Handling

Multiple Operation Modes

Vertical Mode

Briefcase Mode

Underslung Mode

Transportation and Storage



Footnotes:

Check the camera compatibility list for detailed information on supported camera models.

  1. Requires camera control cable. Check the camera compatibility list for detailed information on supported camera models.
  2. Sold separately.
  3. Tested in a closed environment in favorable conditions and an unobstructed wireless signal using the FCC and SRRC standard (max 100 m using the CE standard). Actual results may vary.
  4. Measured with the gimbal balanced, equipment in a level and stationary state, and three axes in an active state.
  5. Some accessories sold separately.

DJI RS3 In The Box

Accessories DJI RS 3    DJI RS 3  Combo
Carrying Case 0 1
Gimbal 1 1
BG21 Grip 1 1
USB-C Charging Cable (40 cm) 1 1
Briefcase Handle 0 1
Lens-Fastening Support 1 1
Extended Grip/Tripod (Plastic) 1 1
Quick-Release Plate (Arca-Swiss/Manfrotto) 1 1
Focus Motor (2022) 0 1
Focus Motor Rod Mount Kit 0 1
Focus Gear Strip 0 1
Multi-Camera Control Cable (USB-C, 30 cm) 1 2
Lens-Fastening Strap 0 1
Screw Kit 1 1
  Includes:
D-Ring Camera Mounting Screw 1/4"-20 × 1
Screw 1/4"-20 × 1
Includes:
D-Ring Camera Mounting Screw 1/4"-20 × 1
Screw 1/4"-20 × 1



DJI RS3 Specification Table

group_title item_title spec_key spec_value
Peripheral Accessory Port "NATO Ports
1/4""-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)"
Peripheral Battery "Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)"
Peripheral Connections "Bluetooth 5.0
Charging Port (USB-C)"
Peripheral Ronin App Requirements "iOS 11.0 or above
Android 7.0 or above"
Peripheral Languages Supported by the Touchscreen English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance Tested Payload 3 kg (6.6 lbs)
Working Performance Maximum Controlled Rotation Speed "Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s"
Working Performance Mechanical Range "Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°"
Mechanical & Electrical Properties Operating Frequency 2.400-2.484 GHz
Mechanical & Electrical Properties Bluetooth Transmitter Power <8 dBm
Mechanical & Electrical Properties Operating Temperature -20° to 45° C (-4° to 113° F)
Mechanical & Electrical Properties Weight "Gimbal: Approx. 990 g (2.18 lbs)
Grip: Approx. 200 g (0.44 lbs)
Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)"
Mechanical & Electrical Properties Dimensions "Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)<br>
Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)"
DJI Ronin Image Transmitter Connections "Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)"
DJI Ronin Image Transmitter Expansion Port Cold Shoe
DJI Ronin Image Transmitter Operating Frequency "2.400-2.484 GHz<br>
5.725-5.850 GHz"
DJI Ronin Image Transmitter Weight 126 g (0.27 lbs)
DJI Ronin Image Transmitter Dimensions 82×63×24 mm (L×W×H)
DJI Ronin Image Transmitter Transmitter Power (EIRP) "2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)"
DJI Ronin Image Transmitter Battery Capacity: 2970 mAh
DJI Ronin Image Transmitter Compatible Charger: 5V/2A
DJI Ronin Image Transmitter Charging Time: Approx. 2.5 hours
DJI Ronin Image Transmitter Max Battery Life: Approx. 3.5 hours
DJI Ronin Image Transmitter Transmission Range "200 m (SRRC/FCC)
100 m (CE)"
DJI Ronin Image Transmitter Latency 60 ms
DJI Ronin Image Transmitter Operating Current/Voltage 900 mAh, 3.7V
DJI Ronin Image Transmitter Operating Temperature 0° to 45° C (32° to 113° F)
