MicaSense Altum-PT Multispectral Kit

MicaSenseSKU: 805-00092

Package: Altum-PT
Price:
Sale price$20,793.50 CAD
Stock:
In stock

Description

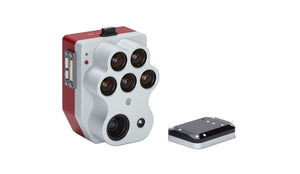

MicaSense Altum-PT

Altum-PT is an optimized 3-in-1 solution for advanced remote sensing and agricultural research. It seamlessly integrates an ultra-high-resolution panchromatic imager, a new thermal imager that provides twice the ground resolution of the previous Altum, and five discrete spectral bands, allowing plant-level applications such as early-stage stand counting. Altum-PT also features a global shutter for distortion-free results, open APIs, and a new storage device allowing for up to 2 captures/second.

The Altum-PT sensor kit comes with: Altum-PT sensor, DLS 2 with embedded GPS, Calibrated Reflectance Panel (CRP 2), USB WiFi dongle, lens cover, necessary integration cables, assorted mounting hardware, CFexpress card, CFexpress card reader, Hard Carrying Case, Quick Start Guide.


KEY FEATURES

INCREASED STORAGE
New professional removable storage standard in CFexpress, enabling over two captures per second, immediate turnaround time between flights by swapping cards, and super-fast card-to-computer upload speeds for more efficient data management.

TWICE THE SPATIAL RESOLUTION OF THE PREVIOUS ALTUM
Altum-PT features an ultra-high resolution panchromatic sensor which allows for “pan-sharpening” the multispectral imagery, ultimately increasing the spatial resolution of the multispectral data: 1.2 cm (0.47in) pan-sharpened ground resolution when flying at 60m (200ft).

UGRADETED THERMAL SENSOR
Altum-PT features a built-in 320 x 256 FLIR Boson® that enables thermal maps at twice the ground resolution of Altum - 17cm from 60m flight altitude.


SPECIFICATIONS

Weight 460 g (16.2 oz.)
Altum-PT + DLS2
Dimensions 11.0 x 8.0 x 6.9 cm
(4.3 in x 3.1 in x 2.7 in)
External Power 7.0 V - 25.2 V
Power Input 5.5/7.0/10W (standby, average, peak)
Sensor Resolution 2064 x 1544 (3.2MP per MS band)
4112 x 3008 (12MP per PAN band)
320 × 256 thermal infrared
Spectral Bands Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)
RGB Color Output 12.4 MP (global shutter, aligned with all bands)
Thermal FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated
Multispec GSD (per multispec band) 5.28 cm per pixel at 120 m
Thermal GSD 33.5 cm per pixel at 120 m
Panchro & Pansharpened GSD 2.49 cm per pixel at 120 m
Capture Rate 2 capture per second raw DNG*
Interfaces 3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CFexpress for storage
Field of View 50° HFOV x 38° VFOV (multispectral)
46° HFOV x 35° VFOV (panchromatic)
48o x 39o (thermal)
Storage CFexpress Card

* RGB output with appropriate post-processing
*Specifications are subject to change without notice
